6SL3225-0BE33-7

Producer: SIEMENS

Sinamics G120 - power module PM250
6SL3225-0BE33-7
Power module PM250 for Sinamics G120.

The PM250 Power Module features an absolutely unique technology which we have called “Efficient Infeed Technology”. This
regenerative feedback capability of the PM260 Power Module in generating mode (electronic braking) means that energy...

More information

This product is not available. Please, choose an alternative.
Product specifications
power output (LO) (kW (LO)) 45
input voltage (V) 3AC 380-480
max. output voltage (V) 3AC 480
rated imput current (A) 84
Rated output current (A) 150
protection IP20
output frequency MIN (Hz) 0 - 650
Size E
energy regeneration YES
brake chopper NO
weight (kg) 14

Compare a product


Configuration

Documentation

Description

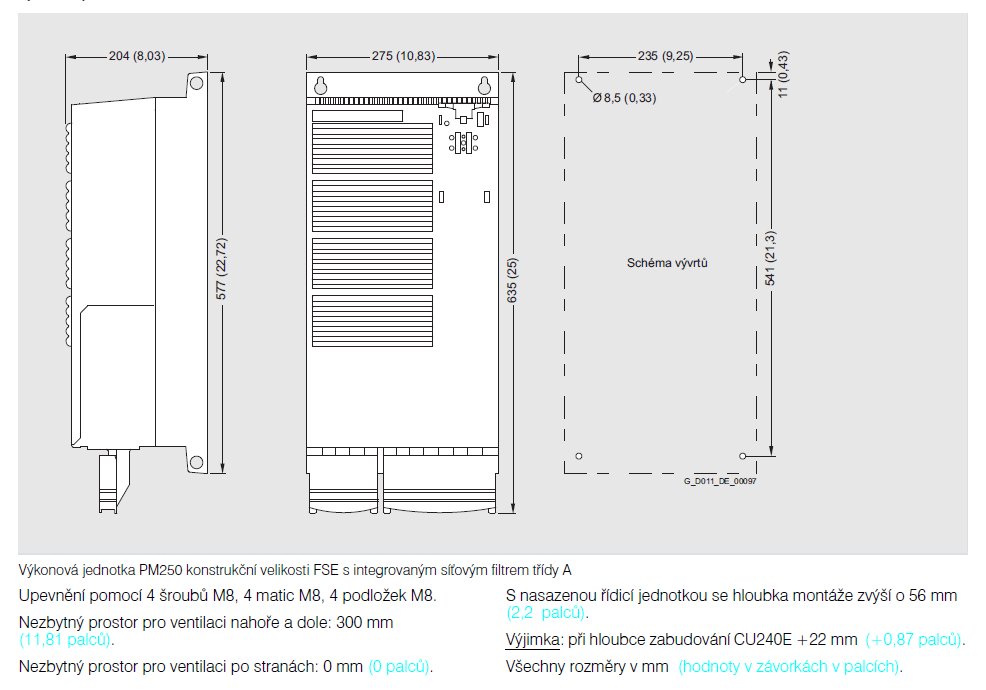

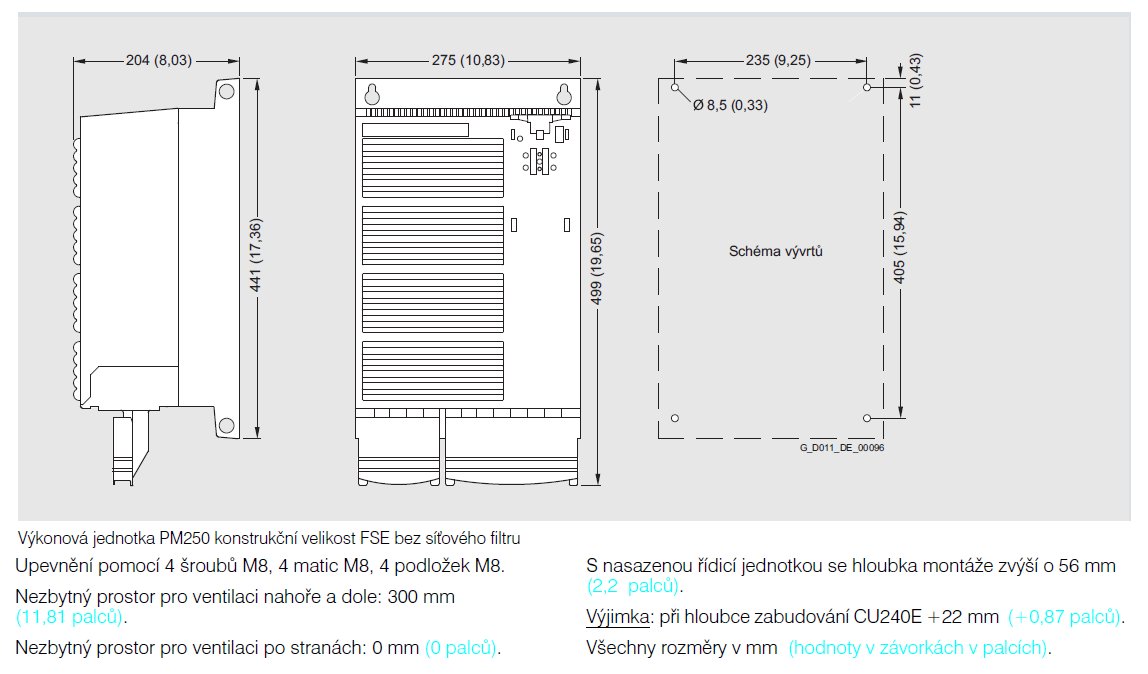

Dimensions

Accessories

Product design (mandatory options):

EMC internal filter
