1MJ6073-6CA

Producer: SIEMENS

1MJ6073-6CA
Three-phase squirrel-cage ex-proof motor for zone 1. Protection degree EEx de IIC T4 or EE x d IIC T4 (with option K53). Suitable for converter driven operation (only with option A15 - 4xPTC thermistor or A16 - 8x PTC thermistor installed).

More information

This product is not available. Please, choose an alternative.
Product specifications
power (kW) 0,25
speed (rpm) 870
number of poles (pole) 6
motor housing cast iron
protection IP55
motor frame size 71M
insulation class F
basic voltage (V) 400/230V Y/D 50Hz
rated imput current (A) 0,83/1,43
output torque (Nm) 2,70
weight (kg) 16
ATEX certification II G EEx de IIC T1-T4
motor load S1
bearings DE/NDE 6202 Z C3 / 6202 Z C3
Polarity :: 6-pole (1000 rpm) Efficiency :: IE1 (Standard Efficiency) Ex-proof design :: Zone 1 (Ex de or Ex d) Operation type :: DOL / VSD Availability EXW :: Delivery term a availability upon request Motor body :: Cast Iron Product status :: Production terminated - ask for replacement
Polarity Efficiency Ex-proof Operation Avail. Material Status

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor voltage

Motor design

Product configuration (voluntary options):

thermal protection

other voltages

regreasing device

test certificates

national certificates and standards

protection degree

terminal inputs position

shaft extension

rotor balancing

windings heating

windings and insulation, increased ambient tempera

increased air humidity

connection box Ex protection

other motor design

Documentation

Dokumentace na vyžádání

Dimensions

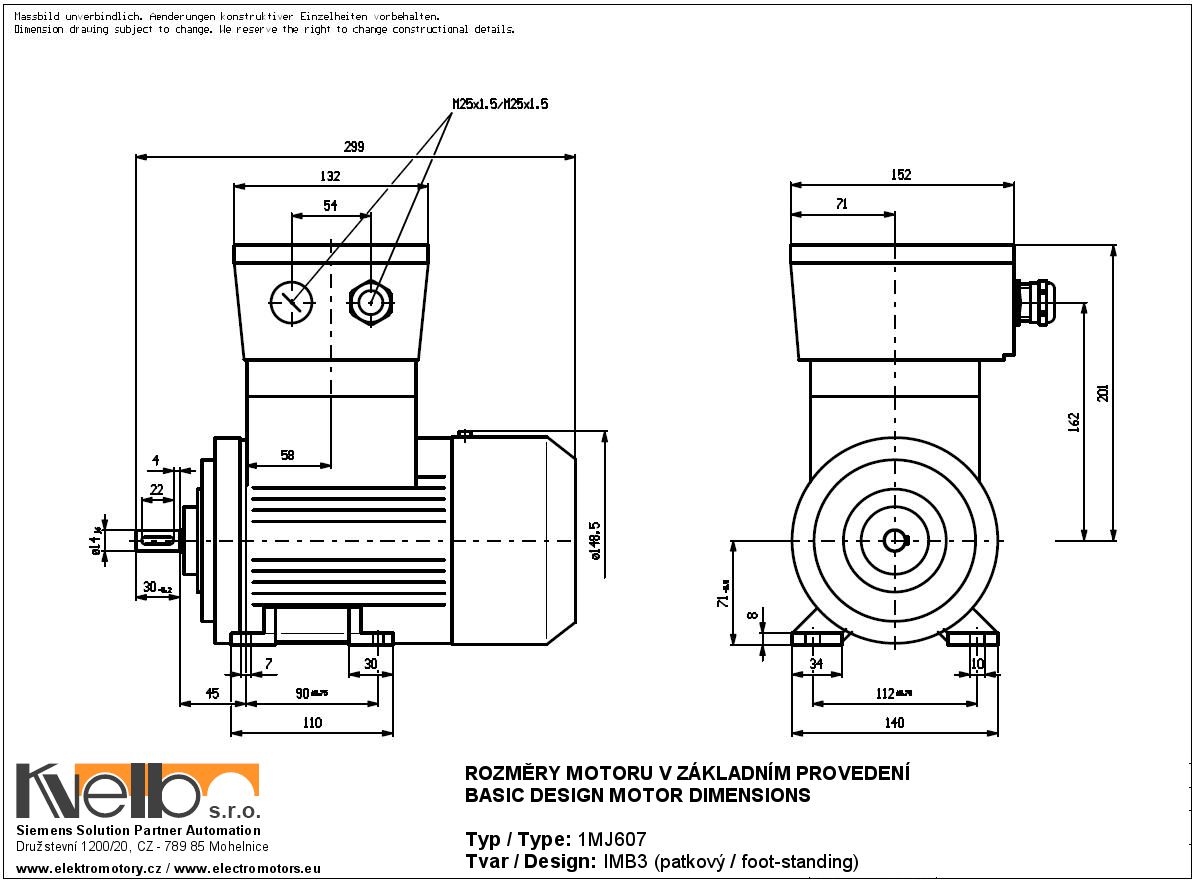

1MJ607 IMB3 (foot-standing) dimensions
1MJ607 IMB3 (foot-standing) dimensions

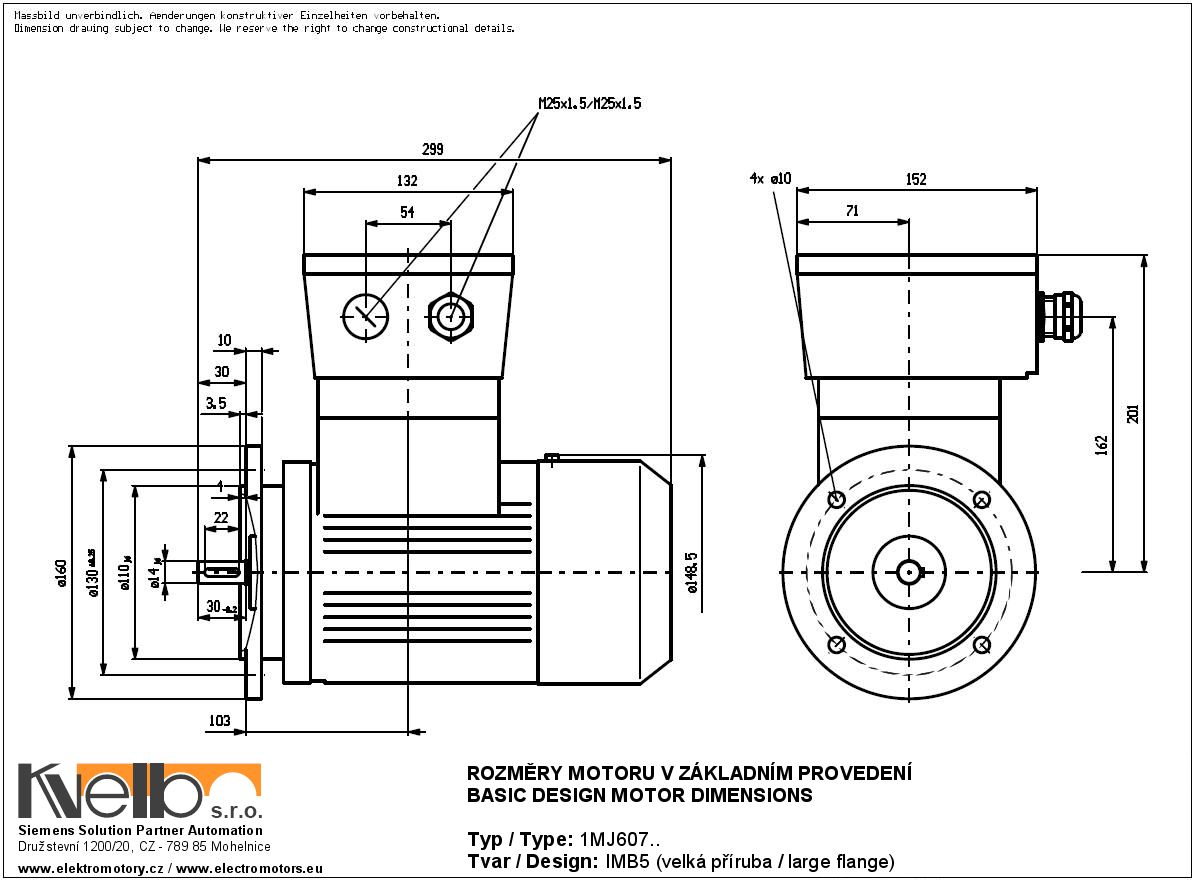

1MJ607 IMB5 (large flange) dimensions
1MJ607 IMB5 (large flange) dimensions

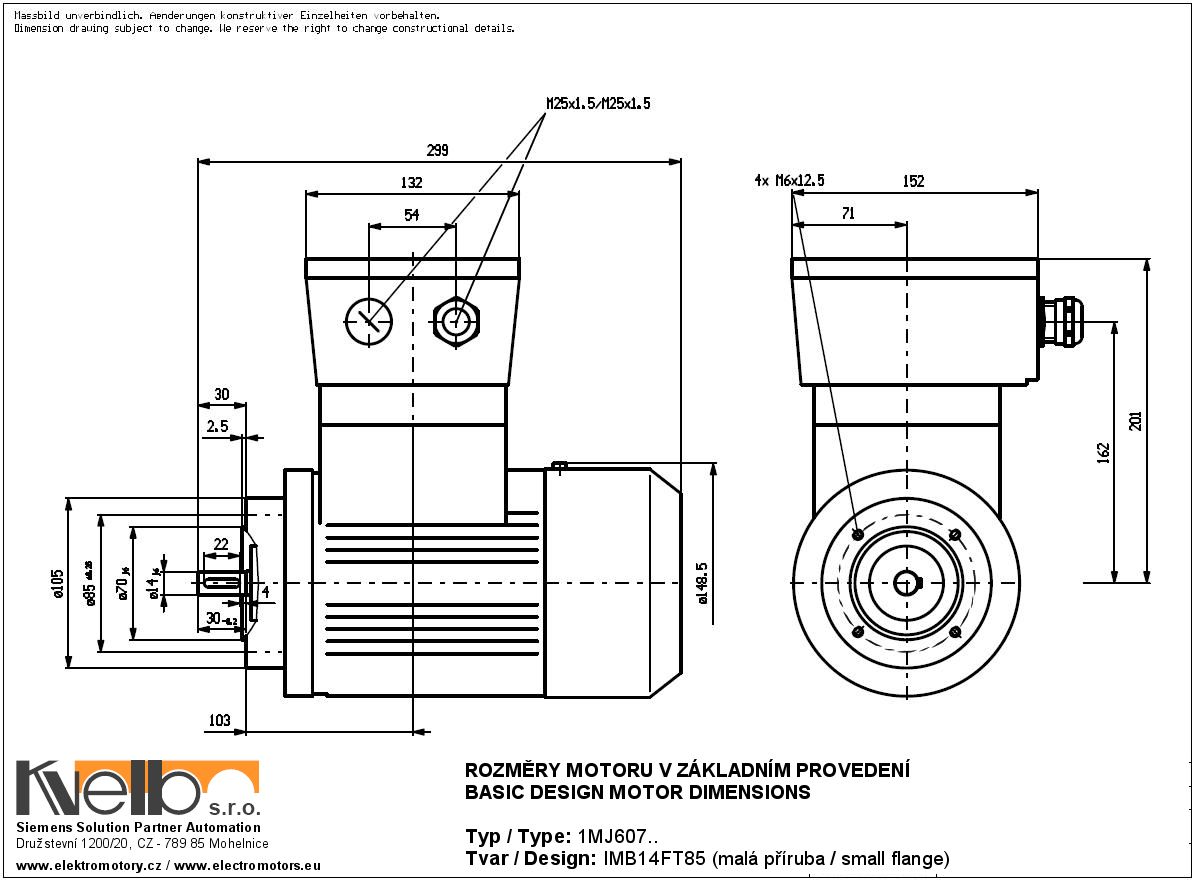

1MJ607 IMB14FT (small flange) dimensions
1MJ607 IMB14FT (small flange) dimensions

Description

Three-phase squirrel-cage ex-proof motor for zone 1. Protection degree EEx de IIC T4 or EE x d IIC T4 (with option K53). Suitable for converter driven operation (only with option A15 - 4xPTC thermistor or A16 - 8x PTC thermistor installed).
