1LE1601-1AC4

Producer: SIEMENS

1LE1601-1AC4

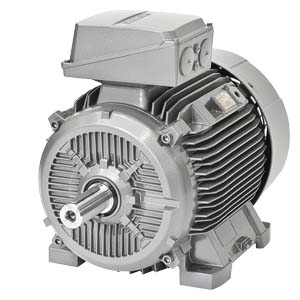

Electric motors 1LE16 are standard low-voltage squirrel cage (induction) motors series Simotics SD (Severe Duty) with cast-iron body, made by Siemens. Being characterized by highest quality, wide range of available modifications and configurations including designs and certifications for global markets,...

More information

This product is not available. Please, choose an alternative.

Product specifications
power (kW)	1,50
speed (rpm)	970
efficiency	IE2
number of poles (pole)	6
motor housing	litina
protection	IP55
motor frame size	100L
insulation class	class F / B
basic voltage (V)	400/230
rated imput current (A)	3,7
output torque (Nm)	15
weight (kg)	36
motor load	S1
bearings DE/NDE	6306 ZC3
