6SL3210-1KE23-2

Product design (mandatory options):

Documentation

Dokumentace na vyžádání

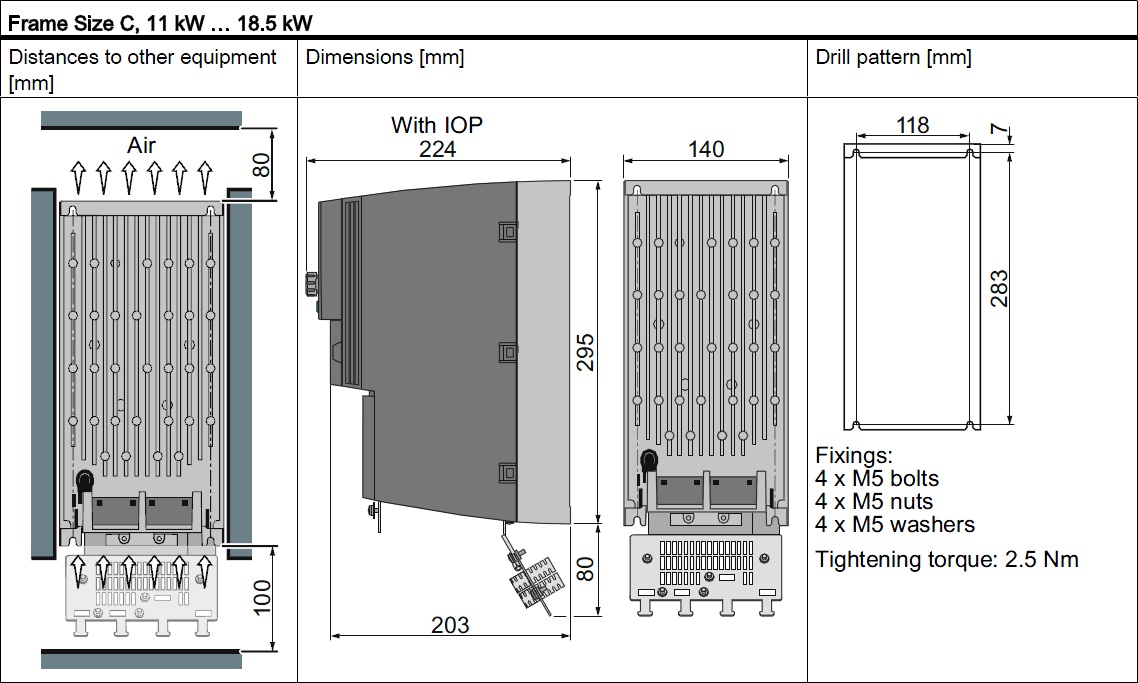

Dimensions

Description

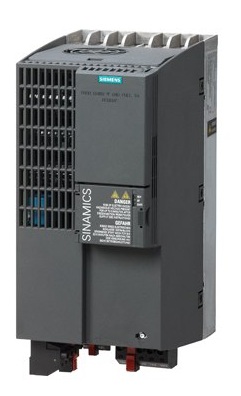

SINAMICS G120C

SINAMICS G120C has been especially designed for machine manufacturers who are looking for an economic, space-saving and easy-to-operate frequency converter providing a multitude of functions. This device combines in particular compactness with superior power density and is characterized by fast installation and commissioning, user-friendly connections resp. easy-to-use commissioning tools.
With its three frame sizes, it covers a performance range of 0.55 kW to 18.5 kW. The energy-efficient device serves the most common communication interfaces and is an integral part of Totally Integrated Automation. SINAMICS G120C – a brief Summary of its Strengths
Smallest size
Compact, small drive, high power density
fast mechanical installation (i.e. pluggable terminals)
Side-by-side mounting without derating
Easy to use
Simple, optimized commissioning
Effective, adequate parameter set (simple storing and cloning)
Usable with IOP, BOP-2 panels and USB connection
Energy-efficient, encoderless vector control - automatic flow reduction with V/F ECO
Safety (STO) included with no extra costs
Profibus, CAN, Modbus RTU and USS available

SINAMICS G120C – Typical Uses
Machine building; also for use in numerous further applications – for example, in mixers, conveyors, fans, pumps, compressors or basic production machines.
