6SL3210-1KE21-3

Producer: SIEMENS

6SL3210-1KE21-3

Doba dodání: on request

Guarantee period: 12 months

Product specifications
power (kW)	5,50
input voltage (V)	3 x 380-480V, 50/60 Hz
Output current HO (A)	8,8
Output current LO (A)	12,5
Overload HO	2.0 x IH po 3 s a dále 1,5 x IH po 57 s při cyklu 300s
Overload LO	1,6 x IL po 3 s a dále 1,1 x IL po 57 s při cyklu 300 s
digital inputs (DIN)	6
Safety Integrated functions (SIF)	1 - STO
analog inputs (AIN)	1
Digital outputs (DO)	2
analog output (AOUT)	1
control methods	U/f, U/f ECO, vektor
communication interf	volitelně USS/Modbus RTU / PROFIBUS DP / CANopen
Size	B
protection	IP20

Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

EMC filter

	A - integrated filter Class A
	U - without EMC filter

Integrated communication interface

	B2 - RS485 with USS, Modbus RTU
	F2 - Profinet - PN
	P2 - PROFIBUS-DP

Documentation

Dokumentace na vyžádání

Dimensions

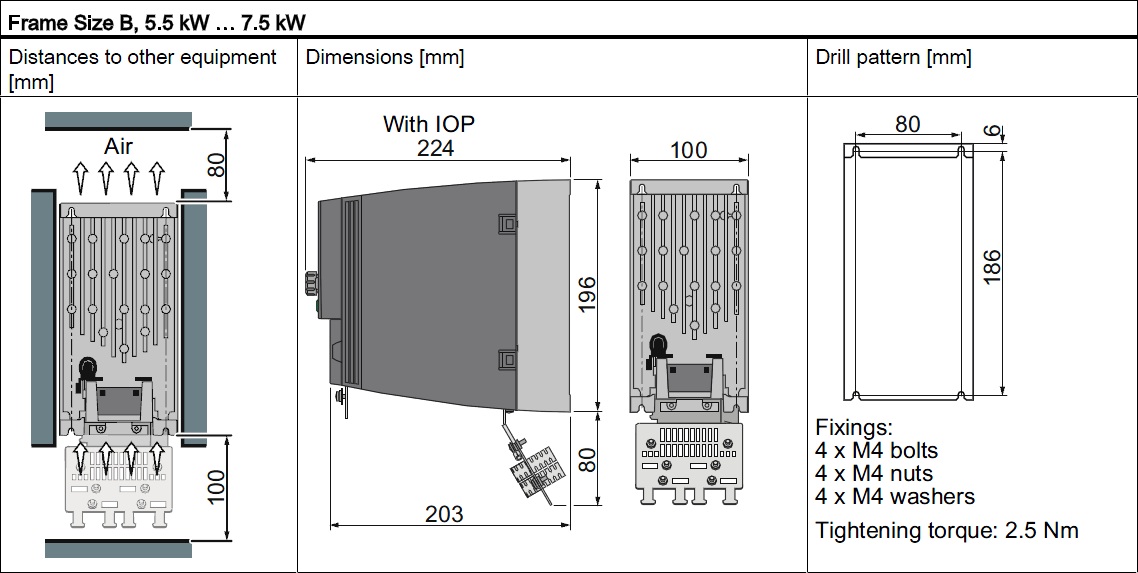

G120C FSB - dimensions

Description

SINAMICS G120C

SINAMICS G120C has been especially designed for machine manufacturers who are looking for an economic, space-saving and easy-to-operate frequency converter providing a multitude of functions. This device combines in particular compactness with superior power density and is characterized by fast installation and commissioning, user-friendly connections resp. easy-to-use commissioning tools.
With its three frame sizes, it covers a performance range of 0.55 kW to 18.5 kW. The energy-efficient device serves the most common communication interfaces and is an integral part of Totally Integrated Automation. SINAMICS G120C – a brief Summary of its Strengths
Smallest size
Compact, small drive, high power density
fast mechanical installation (i.e. pluggable terminals)
Side-by-side mounting without derating
Easy to use
Simple, optimized commissioning
Effective, adequate parameter set (simple storing and cloning)
Usable with IOP, BOP-2 panels and USB connection
Energy-efficient, encoderless vector control - automatic flow reduction with V/F ECO
Safety (STO) included with no extra costs
Profibus, CAN, Modbus RTU and USS available

SINAMICS G120C – Typical Uses
Machine building; also for use in numerous further applications – for example, in mixers, conveyors, fans, pumps, compressors or basic production machines.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SL3201-0BE21-8AA0	SINAMICS brzdný odpor R=75 OHM, P jmenovitý=375W, P max=7500W/12S/5% zátěž, montáž STANDALONE ;	120,82 EUR	Detail - 6SL3201-0BE21-8AA0
	6SL3203-0CE21-8AA0	SINAMICS Vstupní tlumivka 380-480V 3AC 47-63HZ I_LN = 22,3A STANDALONE ;	79,35 EUR	Detail - 6SL3203-0CE21-8AA0
	6SL3254-0AM00-0AA0	Paměťová karta MMC ;	0,00 EUR	Detail - 6SL3254-0AM00-0AA0
	6SL3255-0AA00-4CA1	SINAMICS G120 Základní ovládací panel (BOP-2) ;	28,43 EUR	Detail - 6SL3255-0AA00-4CA1
	6SL3255-0AA00-4HA0	IOP Handheld. Součástí dodávky je:IOP, Skříň handheld, Akumulátory (4 AA), Nabíječka (mezinárodní), Propojovací kabel RS232 (délka 3 m, použitelný jen pro SINAMICS G120 a SIMATIC ET 200S FC), USB kabel (délka 1 m). Pro CU240E .. , CU240S .. Je nutná 6SL3255-0AA00-2AA1 (viz. příslušenství) ;	0,00 EUR	Detail - 6SL3255-0AA00-4HA0
	6SL3255-0AA00-4JA0	Inteligentní operační panel IOP ;	112,58 EUR	Detail - 6SL3255-0AA00-4JA0
	6SL3256-0AP00-0JA0	BOP2 / IOP - sada pro montáž na dveře ;	22,74 EUR	Detail - 6SL3256-0AP00-0JA0
