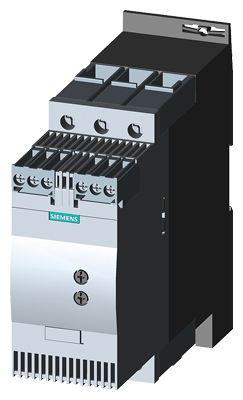

3RW3038-

Producer: SIEMENS

3RW3038-

go to configuration

Doba dodání: on request

Guarantee period: 12 months

Product specifications
Suitable for three-phase induction motors	37
Operating voltage (V)	200 ... 480
Operating frequency (Hz)	50 ... 60
Operating current (at 40°C) (A)	72
control voltage (V)	24 / 230 AC/DC
ramp-up / ramp-down (s)	0 .. 20 (pouze rozběh)
integrated bypass	YES
intrinsic device pro	NO
motor protection	NO
driven phases	2
Size	S2
Auxiliary contacts	1 (NO)

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Terminal type

	1 - Screw terminals
	2 - spring-loaded

Control voltage

	BB04 - Supply voltage 24V AC/DC
	BB14 - Supply voltage 110 ... 230V AC/DC

Documentation

Dokumentace na vyžádání

Dimensions

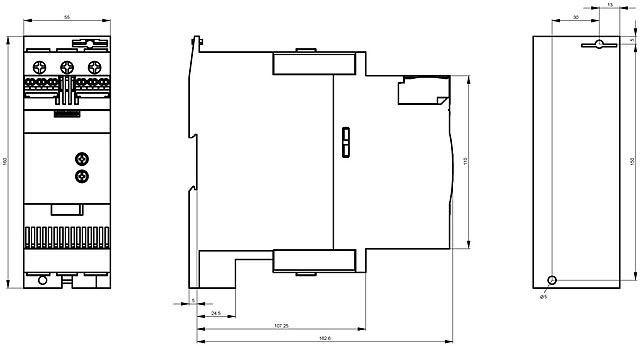

3RW3 ... - Size S2, spring loaded

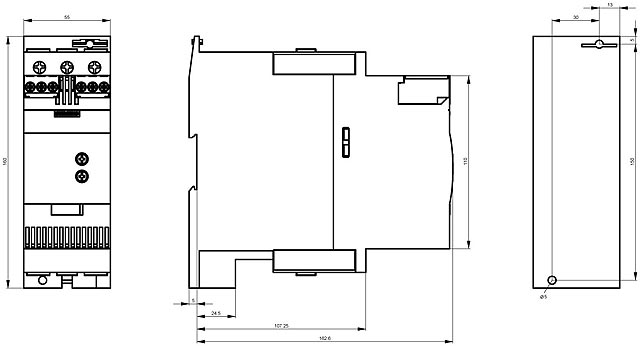

3RW3 ... - Size S2, screw connection

Description

SIRIUS 3RW30 for Standard Applications

Belt slip on heater blowers or a sudden buildup of water pressure in washing installations are only two of the many problems that can occur when motors generate too much power on starting. With the SIRIUS 3RW30 from 1.5 kW to 55 kW (at 400 V) you can easily avoid such problems. And the best of it all is: It is also possible to switch straight from direct to soft start because SIRIUS 3RW30 is the only soft starter in the world that offers identical sizes in a family of devices.

Advantages at a glance
Soft start
Stepless starting
Uniform connection system with screw or spring-loaded terminals
Space-saving clear cabinet design thanks to its small and compact construction
Integral bypass
Reduction of current peaks
Relief of the power supply network
Reduction of the mechanical load in the drive
Simple and fast startup and maintenance
