6SL3244-0BB00-1PA1

Producer: SIEMENS

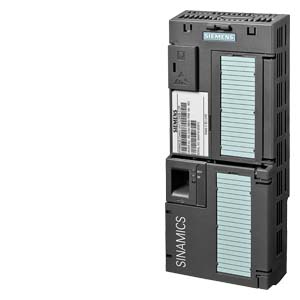

Control unit CU240B-2 DP
6SL3244-0BB00-1PA1
Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available...

More information

This product is not available. Please, choose an alternative.
Product specifications
digital inputs (DIN) 4
Digital outputs (DO) 1
analog inputs (AIN) 1
analog output (AOUT) 1
control methods U/f lineární/kvadratické/parametrizované,FCC, vektorové bez snimače, momentové bez snímače
Integrated pulse encoder evaluation NO
Motor temperature sensors PTC/KTY
Brake-Control Externí relé
Communication, port 1 point-to-point PROFIBUS
Ethernet interface NO
MMC slot (MMC) YES
Status Výběhový výrobek od 1.10.2016

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Manual: PDF Uvedení do provozu

Dimensions

Description

Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available in various designs. The basic control unit (CU240E) for standard applications as well as the PROFINET control unit (CU240S PN-F) for PROFINET applications with Safety Integrated functions.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce Název zboží Atributy Cena bez DPH Proklik
6SL3252-0BB00-0AA0 Relé pro ovládání brzdy. Včetně kabelu pro připojení k výkonové jednotce ; 53,83 EUR Detail - 6SL3252-0BB00-0AA0
6SL3254-0AM00-0AA0 Paměťová karta MMC ; 0,00 EUR Detail - 6SL3254-0AM00-0AA0
6SL3255-0AA00-2CA0 propojovací sada Sinamics - PC (USB) ; 26,52 EUR Detail - 6SL3255-0AA00-2CA0
6SL3255-0AA00-4HA0 IOP Handheld. Součástí dodávky je:IOP, Skříň handheld, Akumulátory (4 AA), Nabíječka (mezinárodní), Propojovací kabel RS232 (délka 3 m, použitelný jen pro SINAMICS G120 a SIMATIC ET 200S FC), USB kabel (délka 1 m). Pro CU240E .. , CU240S .. Je nutná 6SL3255-0AA00-2AA1 (viz. příslušenství) ; 0,00 EUR Detail - 6SL3255-0AA00-4HA0
6SL3255-0AA00-4JA0 Inteligentní operační panel IOP ; 112,58 EUR Detail - 6SL3255-0AA00-4JA0
6SL3256-0AP00-0JA0 BOP2 / IOP - sada pro montáž na dveře ; 22,74 EUR Detail - 6SL3256-0AP00-0JA0
Potenciometr 5kOhm + knoflík Potenciometr 5kOhm + přístrojový knoflík ; 2,80 EUR Detail - Potenciometr 5kOhm + knoflík
