1LA9134-6KA

Producer: SIEMENS

1LA.. / 1LG.. motors
1LA9134-6KA
This product is not available. Please, choose an alternative.
Product specifications
power (kW) 5,50
speed (rpm) 960
efficiency IE2(EFF1)
number of poles (pole) 6
motor housing Aluminium
protection IP55
motor frame size 132M
insulation class F
basic voltage (V) 400D/690Y 50Hz, 460D 60Hz
rated imput current (A) 12/6,69
output torque (Nm) 54,70
weight (kg) 64
motor load S1
bearings DE/NDE 6208 2ZC3/6208 2ZC3
Status Produkce ukončena
Polarity :: 6-pole (1000 rpm) Efficiency :: IE2 (HighEfficiency) Ex-proof design :: No protection - only for non-hazardous area Ex-proof design :: Zone 2 possible Ex-proof design :: Zone 21 possible Ex-proof design :: Zone 22 possible Operation type :: DOL / VSD Availability EXW :: Delivery term a availability upon request Motor body :: Aluminum Product status :: Production terminated - ask for replacement
Polarity Efficiency Ex-proof Operation Avail. Material Status

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor voltage

Motor design

Product configuration (voluntary options):

thermal protection

modular extensions

brake voltage

(available only in combination with G26 or F01 option)

manual brake release

(available only in combination with G26 or F01 option)

other pulse generators

other voltages

bearings

locating bearings

regreasing device

test certificates

national certificates and standards

protection degree

terminal box position

terminal inputs position

shaft extension

rotor balancing

windings heating

windings and insulation, increased ambient tempera

low ambient temperature

increased air humidity

design for Zone 2, 21 or 22

(not available in combination with modular extensions)

connection box Ex protection

other motor design

Documentation

Dokumentace na vyžádání

Dimensions

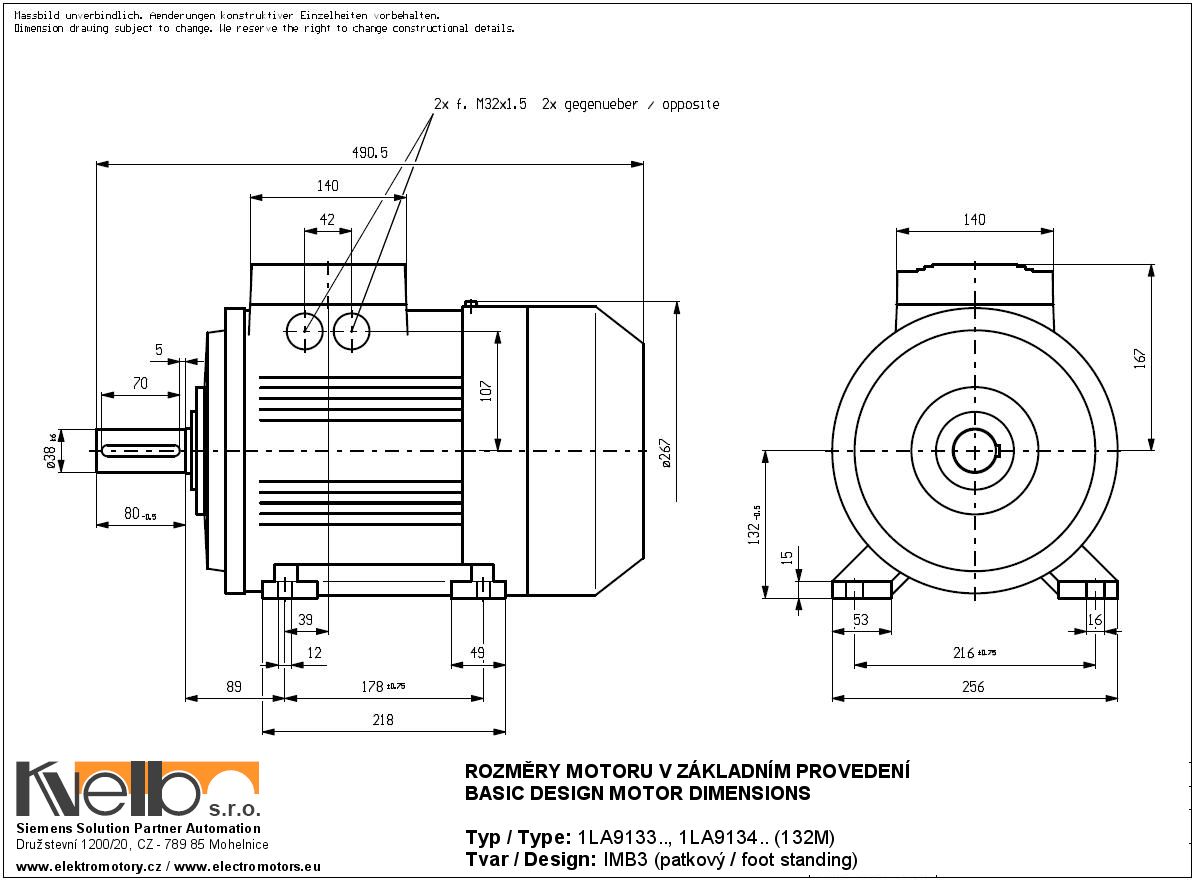

1LA913 IMB3 (foot-standing) dimensions
1LA913 IMB3 (foot-standing) dimensions

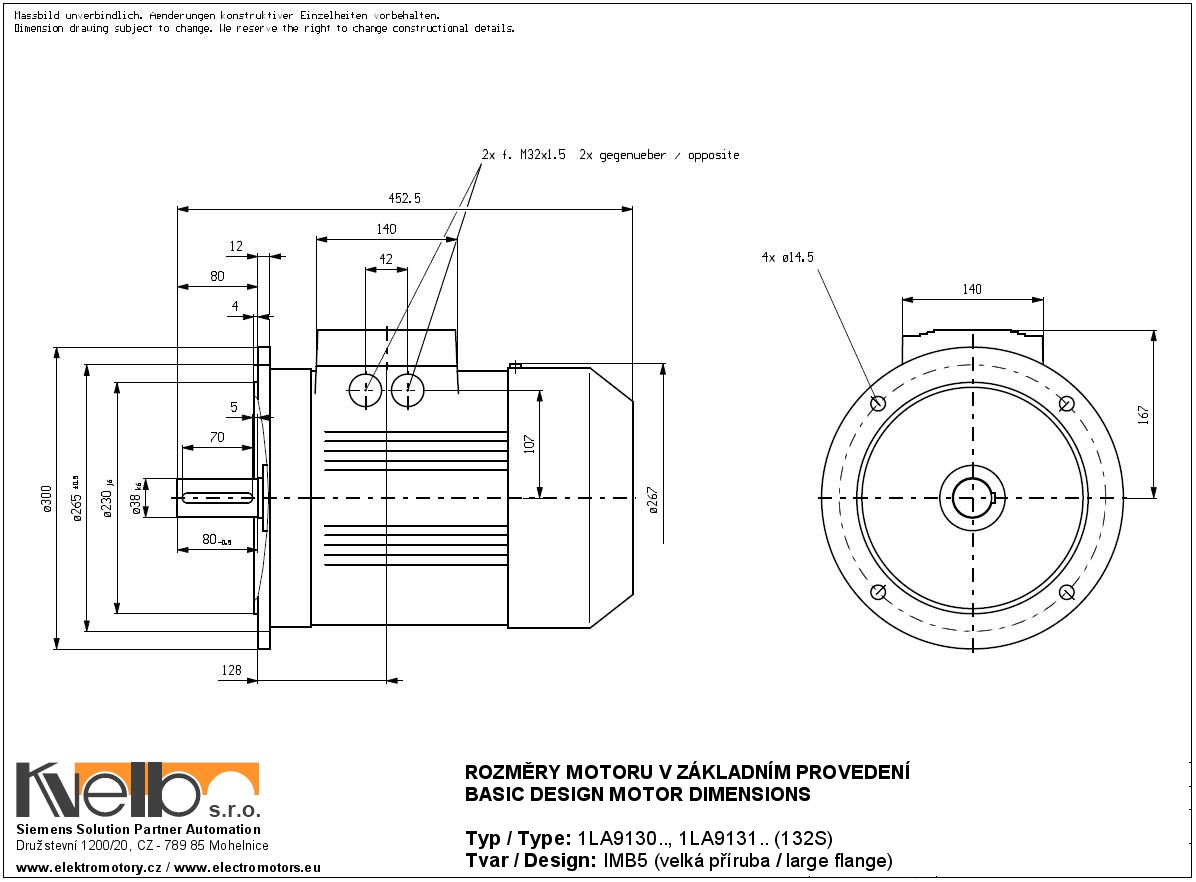

1LA913 IMB5 (large flange) dimensions
1LA913 IMB5 (large flange) dimensions

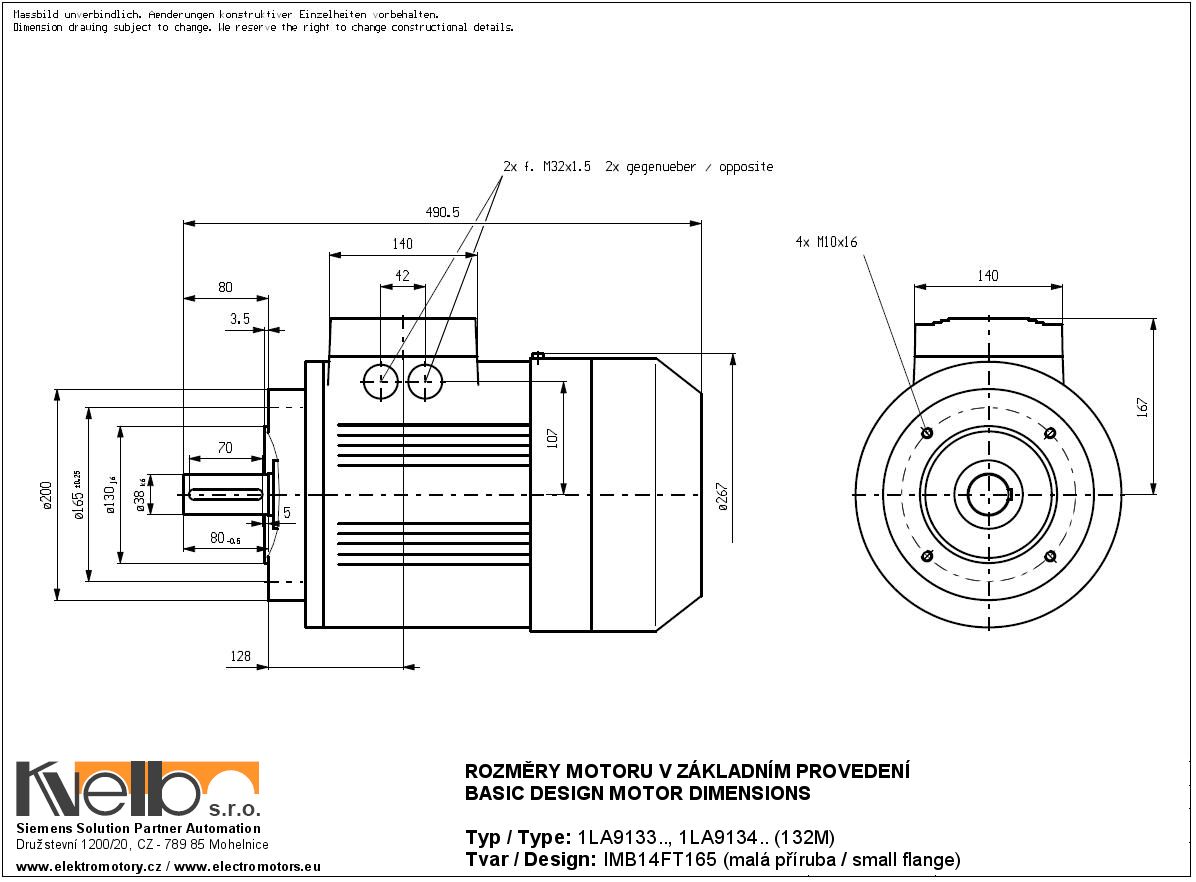

1LA913 IMB14FT (small flange) dimensions
1LA913 IMB14FT (small flange) dimensions

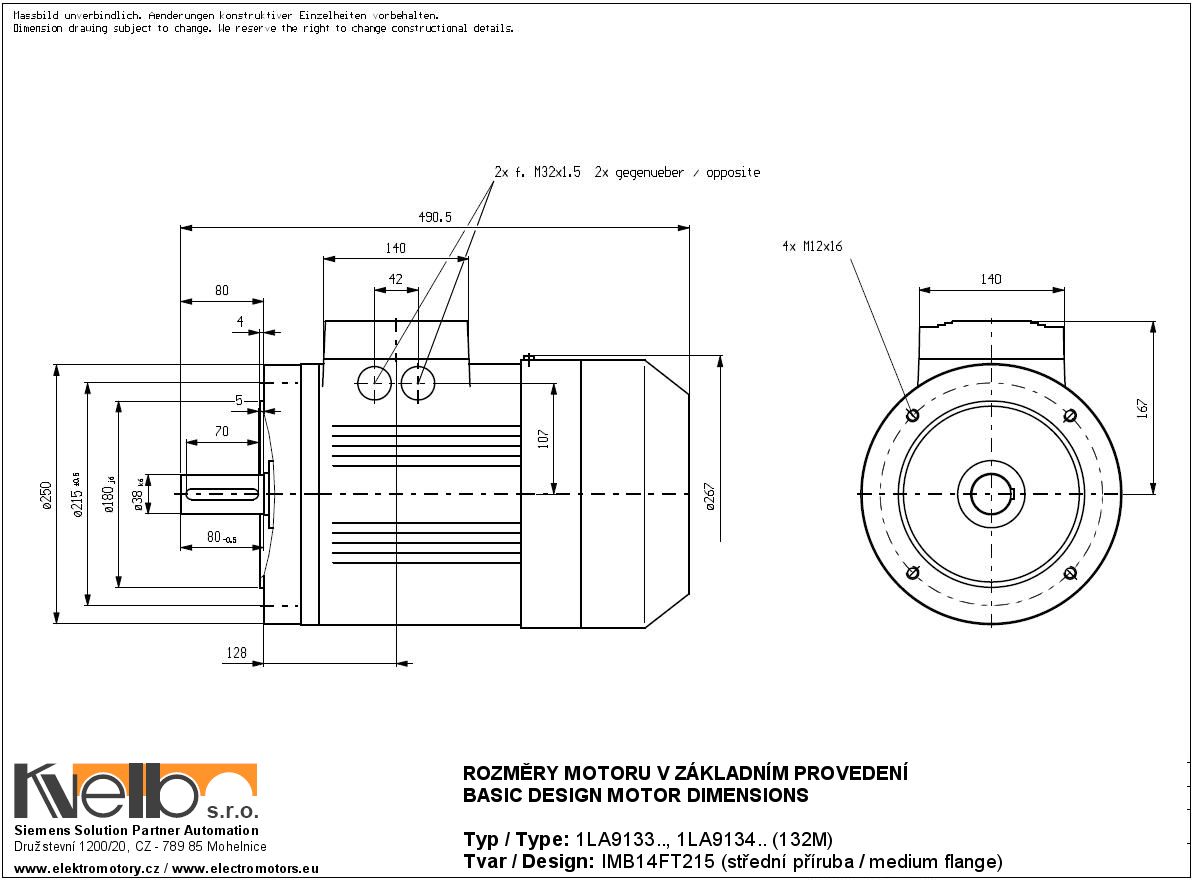

1LA913 IMB14FT (medium flange) dimensions
1LA913 IMB14FT (medium flange) dimensions
1LA913 IMB5 (large flange) dimensions
1LA913 IMB5 (large flange) dimensions

Description

Popis není k dispozici
Produkt nemá přiřazeno žádné příslušenství
